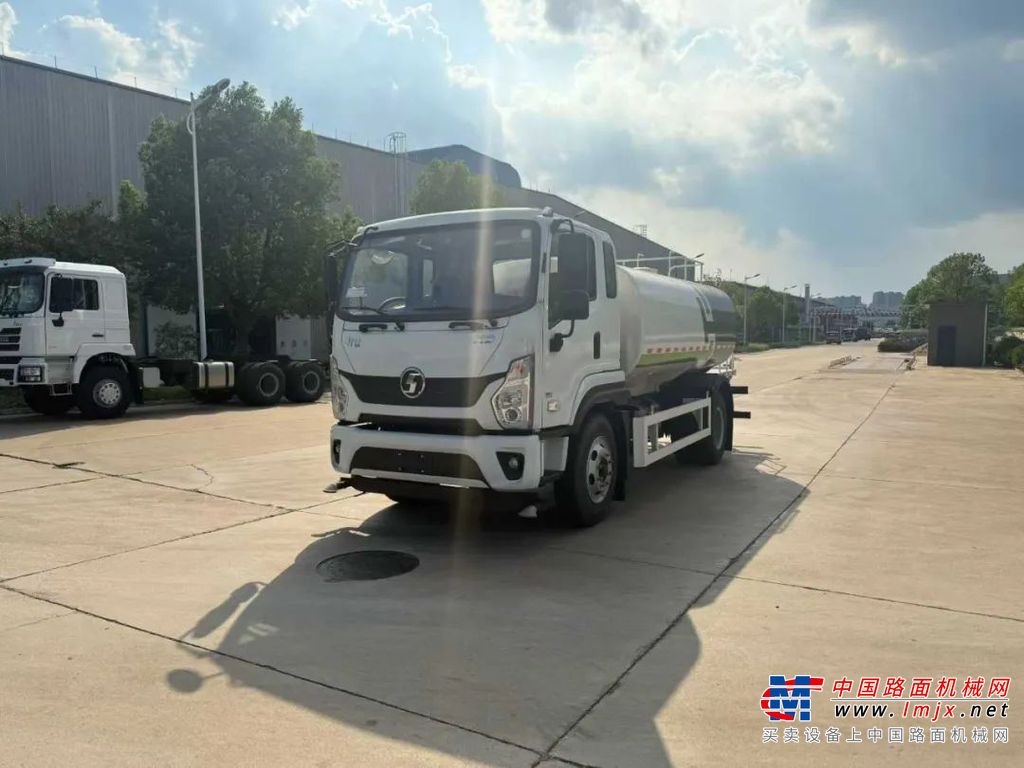

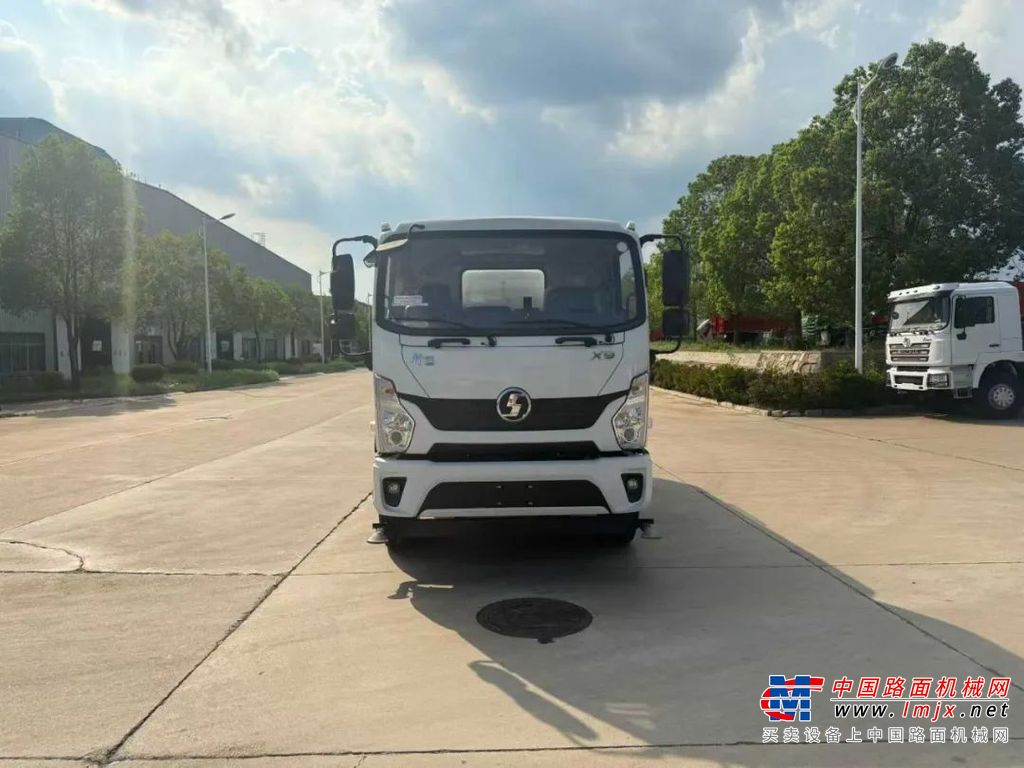

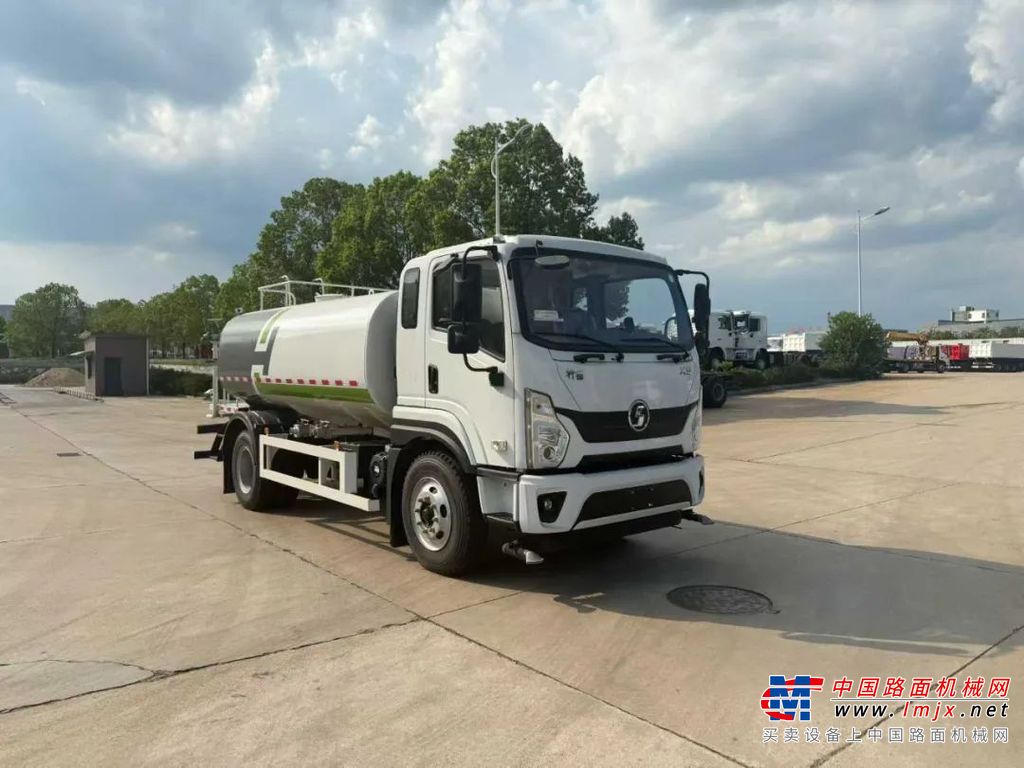

陕汽轩德X9绿化喷洒车12方

陕汽轩德X9绿化喷洒车12方

底盘配置:SX1160GP6411、轴距4100、发动机YCY30170-61(玉柴170马力)、陕齿8JS75C（带取力器）、车架861x232/6+4双层、前桥3.6T、后桥8T、油箱130L铁、轮胎9.00R20/16PR ；X9排半/2120驾驶室、驾驶室：机械式座椅；副驾机械式固定座椅、电动车窗、空调、普通方向盘、中控锁、天行健智雅版BD车载终端、100Ah/免维护蓄电池、带前防护、带备胎。前鸭嘴冲，尾对冲后洒气动控制，大平台可选装雾炮。

企业名称楚胜汽车集团有限公司生产地址随州市经济开发区季梁大道9号产品名称CSC5160GPSS6型绿化喷洒车外形尺寸8350,8250,8150,7920,7820,7720,7850,7750,7650,7420,7320,7220×2550,2500×3100,2960货厢尺寸××总质量16000额定载质量9390,9325,9570,9505整备质量6480,6300额定载客驾驶室人数2,3挂车总质量载质量系数鞍座承载质量前悬/后悬1300/2450,1200/2550,1300/2350,1200/2450,1300/2250,1200/2350,1300/2020,1200/2120,1300/1920,1200/2020,1300/1820,1200/1920,1300/2500,1300/2400,1200/2500,1300/2170,1200/2270,1300/2070,1200/2170,1300/1970,1200/2070接近/离去角20/10,20/11,20/12,20/13,20/14,16/10,16/11,16/12,16/13,16/14轴荷5600/10400防抱死系统有油耗最高车速89识别代号底盘与发动机长按参数可临时修改底盘品牌陕汽牌底盘型号SX1160GP6411
企业名称陕西汽车集团股份有限公司生产地址陕西省西安高新技术产业开发区锦业二路,乌鲁木齐经济技术开发区中科路215号,陕西省西安经济技术开发区泾渭工业园泾渭路1688号,陕西省宝鸡市岐山县蔡家坡经济技术开发区站前大道6号轴数2轴距4100,4500,3950轮胎数6轮胎规格9.00R20,9.00R20 16PR前轮距1770,1937,1810,1650,1700,1790,1830后轮距1700,1818,1725,1595,1650,1750,1810钢板弹簧片数9/11+5,9/11+8,8/10+8,8/10+6,9/10+6,3/4+3,10/10+8,10/11+8燃料种类柴油依据标准GB17691-2018国Ⅵ发动机企业排量功率马力—D40TCIF1昆明云内动力股份有限公司4052135185—YCS04200-68广西玉柴机器股份有限公司4156147200—D36TCIF1成都云内动力有限公司3610130177—YCY30170-61广西玉柴机器股份有限公司2970125170购车电话：13971791990该车用于园林绿化,主要专用装置为喷洒总成.罐体总容量:10.3立方米,罐体有效容积:9.81立方米,运输介质:丙酮水溶液,密度950千克/立方米.罐体外形尺寸(长×长轴×短轴)(mm): 4200×2380×1490,4180×2330×1530,4200×2350×1450,4000×2350×1560.侧、后防护材料均为Q235,螺栓连接,后防护截面尺寸120×50mm,下边缘离地高480mm.ABS系统型号/生产厂家:ZQFB-V/西安正昌电子股份有限公司.仅选用轴距(mm)4100,3950.整车外形尺寸长/前伸量/轴距/前悬/后悬对应关系为(mm):8350/500/4100/1300/2450,8350/500/4100/1200/2550,8250/500/4100/1300/2350,8250/500/4100/1200/2450,8150/500/4100/1300/2250,8150/500/4100/1200/2350,7920/500/4100/1300/2020,7920/500/4100/1200/2120,7820/500/4100/1300/1920,7820/500/4100/1200/2020,7720/500/4100/1300/1820,7720/500/4100/1200/1920,7850/0/4100/1300/2450,7850/0/4100/1200/2550,7750/0/4100/1300/2350,7750/0/4100/1200/2450,7650/0/4100/1300/2250,7650/0/4100/1200/2350,7420/0/4100/1300/2020,7420/0/4100/1200/2120,7320/0/4100/1300/1920,7320/0/4100/1200/2020,7220/0/4100/1300/1820,7220/0/4100/1200/1920,8250/500/3950/1300/2500,8150/500/3950/1300/2400,8150/500/3950/1200/2500,7920/500/3950/1300/2170,7920/500/3950/1200/2270,7820/500/3950/1300/2070,7820/500/3950/1200/2170,7720/500/3950/1300/1970,7720/500/3950/1200/2070,7750/0/3950/1300/2500,7650/0/3950/1300/2400,7650/0/3950/1200/2500,7420/0/3950/1300/2170,7420/0/3950/1200/2270,7320/0/3950/1300/2070,7320/0/3950/1200/2170,7220/0/3950/1300/1970,7220/0/3950/1200/2070.选装驾驶室前部无电子水炮,选装后平台无雾炮,选装后平台样式.随底盘选装Q100标识,选装国六标签,选装遮阳罩及遮阳罩喷字,选装侧围玻璃.选装罐体右侧高位花洒.罐体两侧选装安装炮筒管.
